Reassembly help needed

Posted: September 26th, 2025, 9:10 am
by Atom
Hello. New member here. Hope to receive info on reassembly of P64. I removed the slide to clean. No further disassembly done. But did notice the side piece and small clip came off as I was attempting to re install slide. Any info on where clip re attaches would be appreciated. Sorry I couldn't upload larger pic, but full size pic was too big to upload here.

Re: Reassembly help needed

Posted: September 26th, 2025, 9:11 am
by Atom
Another pic

Re: Reassembly help needed

Posted: September 26th, 2025, 10:48 am
by soram

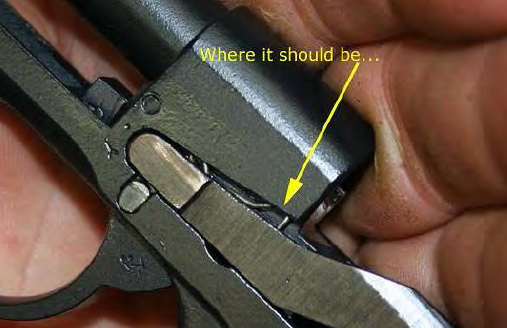

Here ya go:
Ross

Re: Reassembly help needed

Posted: September 26th, 2025, 11:48 am
by Atom
Thank you. Very helpful

Re: Reassembly help needed

Posted: September 26th, 2025, 5:15 pm
by soram
Glad I could help. The pics are from the Assembly Manual
